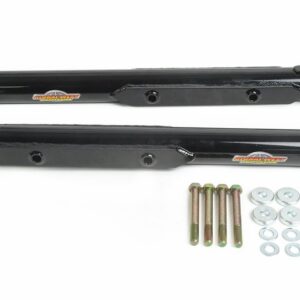

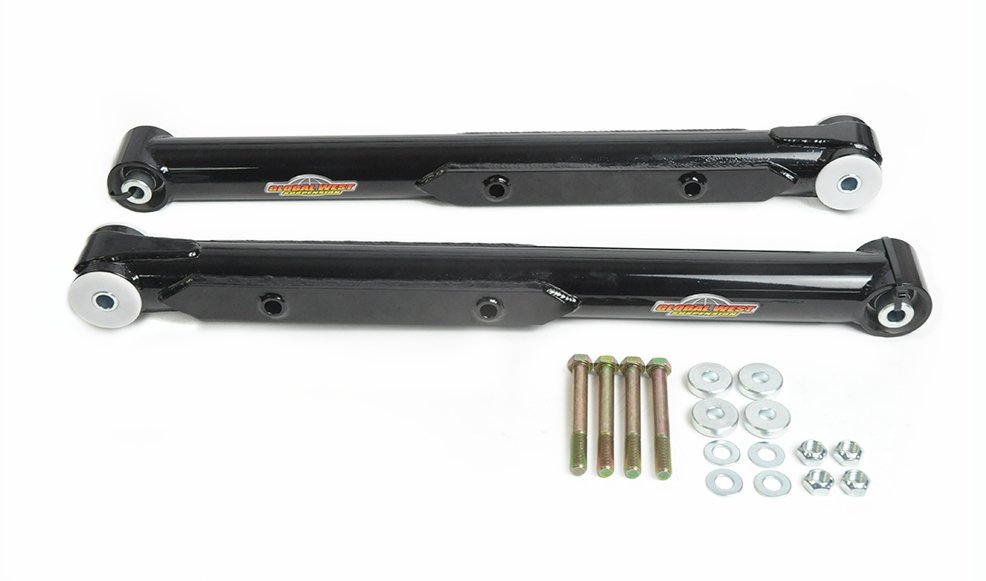

Rear Lower Tubular Control Arms with Del-A-Lum Bushings and Spherical Bearings with Side Mount for Sway Bar Part Number: TBC-4

$436.25

Part Number : TBC-4_

Description





Global West Suspension manufactures tubular rear lower control arms for Chevelle, El Camino, Malibu, Monte Carlo–model years 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, and 1972.

  • Installing these arms will help in many different driving conditions, including controlling lateral movement, reducing wheel hop, increased corner exit, straight line stability and more.
  • They can be used for street, drag race, road race and autocross applications.
  • Sway bar attachments available
  • Spherical aircraft bearings are on the frame side and a Del-A-Lum bushing on the rear end side

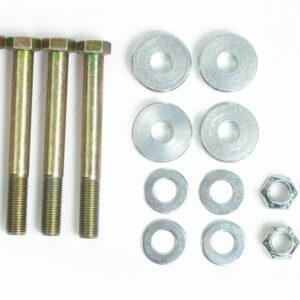

  • New hardware
  • fully assembled
  • Extra spacers comes with this kit to allow proper fitment of the sway bar.
  • Grease fitting
  • Good for the street, road race and drag strip
  • Locks the differential in and will not move side to side

We put a spherical bearing on the frame side of the control arm to make sure the twisting loads that the arm will normally would have doesn’t put the load on the bracket that comes off the frame. The bearing allows it to pivot without any resistance to keep the load off the frame mount.
The spherical bearing does not require lubrication, it has a Teflon inner liner, and won’t have any noice.

This lower control arm design performs flawlessly. The maintenance is low and the bushings are quiet. The rear end is stable, especially around corners. The arm allows the rear end to pivot without bind due to the bearing being installed on the frame side.

Del-A-Lum bushings provide lateral control. This feature will make the car track straighter during a drag launch plus increased lateral cornering ability is achieved. The Del-A-Lum bushings have a lifetime warranty to the original purchaser.

Watch the product overview videos above for more information.

Global West in the Press: Check out this Car Craft Magazine article featuring the Global West Suspension G-Plus System for the 1965 El Camino.

”Bolt-On Suspension Parts & Brake Upgrades on a 1965 Chevrolet El Camino: Bolt-On Performance Suspension Parts”

Additional information

Weight 16 lbs
Dimensions 27 × 4 × 8 in

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Year Make Model Engine
Year Make Model Engine
1964 Buick Gran Sport
1964 Buick Skylark
1964 Buick Special
1964 Buick Sport Wagon
1964 Chevrolet Chevelle
1964 Chevrolet El Camino
1964 Chevrolet Malibu
1964 Chevrolet Monte Carlo
1964 Oldsmobile 442
1964 Oldsmobile Cutlass
1964 Oldsmobile F-85
1964 Pontiac GTO
1964 Pontiac Grand Prix
1964 Pontiac Lemans
1964 Pontiac T-37
1964 Pontiac Tempest
1965 Buick Gran Sport
1965 Buick Skylark
1965 Buick Special
1965 Buick Sport Wagon
1965 Chevrolet Chevelle
1965 Chevrolet El Camino
1965 Chevrolet Malibu
1965 Chevrolet Monte Carlo
1965 Oldsmobile 442
1965 Oldsmobile Cutlass
1965 Oldsmobile F-85
1965 Pontiac GTO
1965 Pontiac Grand Prix
1965 Pontiac Lemans
1965 Pontiac T-37
1965 Pontiac Tempest
1966 Buick Gran Sport
1966 Buick Skylark
1966 Buick Special
1966 Buick Sport Wagon
1966 Chevrolet Chevelle
1966 Chevrolet El Camino
1966 Chevrolet Malibu
1966 Chevrolet Monte Carlo
1966 Oldsmobile 442
1966 Oldsmobile Cutlass
1966 Oldsmobile F-85
1966 Pontiac GTO
1966 Pontiac Grand Prix
1966 Pontiac Lemans
1966 Pontiac T-37
1966 Pontiac Tempest
1967 Buick Gran Sport
1967 Buick Skylark
1967 Buick Special
1967 Buick Sport Wagon
1967 Chevrolet Chevelle
1967 Chevrolet El Camino
1967 Chevrolet Malibu
1967 Chevrolet Monte Carlo
1967 Oldsmobile 442
1967 Oldsmobile Cutlass
1967 Oldsmobile F-85
1967 Pontiac GTO
1967 Pontiac Grand Prix
1967 Pontiac Lemans
1967 Pontiac T-37
1967 Pontiac Tempest
1968 Buick Gran Sport
1968 Buick Skylark
1968 Buick Special
1968 Buick Sport Wagon
1968 Chevrolet Chevelle
1968 Chevrolet El Camino
1968 Chevrolet Malibu
1968 Chevrolet Monte Carlo
1968 Oldsmobile 442
1968 Oldsmobile Cutlass
1968 Oldsmobile F-85
1968 Pontiac GTO
1968 Pontiac Grand Prix
1968 Pontiac Lemans
1968 Pontiac T-37
1968 Pontiac Tempest
1969 Buick Gran Sport
1969 Buick Skylark
1969 Buick Special
1969 Buick Sport Wagon
1969 Chevrolet Chevelle
1969 Chevrolet El Camino
1969 Chevrolet Malibu
1969 Chevrolet Monte Carlo
1969 Oldsmobile 442
1969 Oldsmobile Cutlass
1969 Oldsmobile F-85
1969 Pontiac GTO
1969 Pontiac Grand Prix
1969 Pontiac Lemans
1969 Pontiac T-37
1969 Pontiac Tempest
1970 Buick Gran Sport
1970 Buick Skylark
1970 Buick Special
1970 Buick Sport Wagon
1970 Chevrolet Chevelle
1970 Chevrolet El Camino
1970 Chevrolet Malibu
1970 Chevrolet Monte Carlo
1970 Oldsmobile 442
1970 Oldsmobile Cutlass
1970 Oldsmobile F-85
1970 Pontiac GTO
1970 Pontiac Grand Prix
1970 Pontiac Lemans
1970 Pontiac T-37
1970 Pontiac Tempest
1971 Buick Gran Sport
1971 Buick Skylark
1971 Buick Special
1971 Buick Sport Wagon
1971 Chevrolet Chevelle
1971 Chevrolet El Camino
1971 Chevrolet Malibu
1971 Chevrolet Monte Carlo
1971 Oldsmobile 442
1971 Oldsmobile Cutlass
1971 Oldsmobile F-85
1971 Pontiac GTO
1971 Pontiac Grand Prix
1971 Pontiac Lemans
1971 Pontiac T-37
1971 Pontiac Tempest
1972 Buick Gran Sport
1972 Buick Skylark
1972 Buick Special
1972 Buick Sport Wagon
1972 Chevrolet Chevelle
1972 Chevrolet El Camino
1972 Chevrolet Malibu
1972 Chevrolet Monte Carlo
1972 Oldsmobile 442
1972 Oldsmobile Cutlass
1972 Oldsmobile F-85
1972 Pontiac GTO
1972 Pontiac Grand Prix
1972 Pontiac Lemans
1972 Pontiac T-37
1972 Pontiac Tempest
